Overview of the Sensor

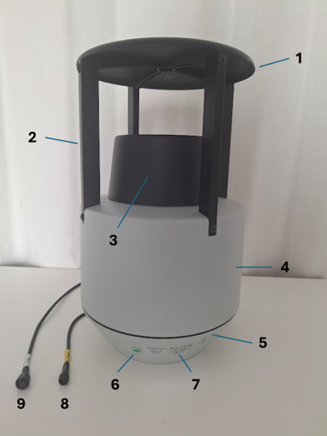

The Vectrack flying insect sensor is shown in Figure 1, indicating the main elements.

  1. Sun hat
  2. Hat leg (one of four)
  3. Inlet funnel
  4. Cover
  5. Base
  6. Status LED
  7. Marking plate
  8. Power cable and connector
  9. Trap cable and connector

Vectrack flying insect sensor

Figure 1 – Vectrack flying insect sensor

Electrical connections​

Two electrical cables pass through the enclosure of the sensor.

The short (0.2 m length) cable is labelled Power and has a 2-pin male connector as shown in Figure 2.

The longer (0.5 m length) cable is labelled Trap and has a 2-pin socket connector as shown in Figure 3.

Sensor power cable and connector

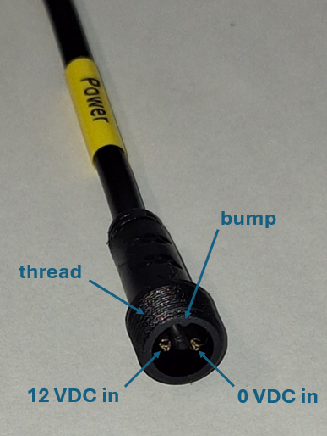

Figure 2. Sensor power cable and connector for connection to a compatible 12V DC power supply.

Trap cable and connector

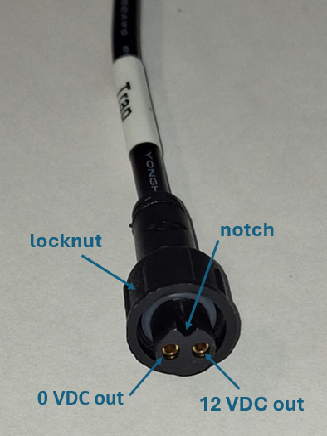

Figure 3. Trap cable and connector for connection to a compatible suction trap, to power the fan in the trap.
