Wi-Fi Configuration

Follow these steps to connect your sensor to your local network. Please ensure you have all requirements ready before starting the installation.

Preparation & Requirements​

  • Network Credentials: Write down the SSID (Network Name) and Password for the Wi-Fi network.
  • Mobile App: Download and install the application Senscape Mosquito Viewer from the Google Play Store.
  • Device Compatibility: Your mobile device must support Bluetooth Smart Ready 4.x Dual Mode (Bluetooth Low Energy, BLE).
  • Signal Strength: Verify there is strong Wi-Fi coverage at the installation site.
  • Power Supply: Ensure a stable and reliable power supply is available during the process.
info

A strong signal is very important, as firmware updates involve significant data transfers and typically take between 5 and 20 minutes to complete. If coverage is poor, the update process may take much longer or may fail due to timeouts.

Device Label

tip

Before proceeding, ensure that the device supports Wi-Fi + BLE. To confirm this, refer to the device identification label.


Connection Steps

Follow these steps to configure and connect your sensor.

Phase A: Entering Configuration Mode​

  1. Turn the sensor upside down: With the power disconnected, turn the sensor upside down. Keep it upside down until step 3.

  2. Power it on three times: Connect the power and watch the LED: it repeats a group of quick flashes every 3 seconds. Disconnect the power and connect it again until the group has three (3) flashes. Each power-on with the sensor upside down adds one flash to the group:

    • 1st power-on: 1 flash every 3 seconds
    • 2nd power-on: 2 quick flashes every 3 seconds
    • 3rd power-on: 3 quick flashes every 3 seconds: the sensor is ready.

    If you power it on once more after the 3 flashes, the count starts again at 1 flash: keep going until you see 3 flashes again.

  3. Turn the sensor upright: Disconnect the power and turn the sensor back to its normal (upright) position.

Phase B: Firmware Initialization & Pairing​

  1. Power On: Turn the sensor back on.
  2. Golden Image Download: The LED will flash rapidly for approximately 30 seconds.
  3. BLE Connection Window: Wait until the LED becomes solid (fixed).
tip

You have 30 seconds to connect to the sensor via the mobile app. If the connection is not established, restart the sensor (OFF/ON) to retry Phase B.

Phase C: Wi-Fi Configuration​

Follow the instructions in the mobile application:

  1. Open the SensViewer app and log in with your username and password.
  2. Tap the menu icon (three horizontal lines) at the top left to access the main menu.
  3. Select the Bluetooth option.
  4. Tap Scan to find the sensor. Make sure Bluetooth is enabled in the app settings.
  5. Once the sensor is discovered and connected via BLE (Bluetooth Low Energy), proceed with configuration.

Step 1 - Login​

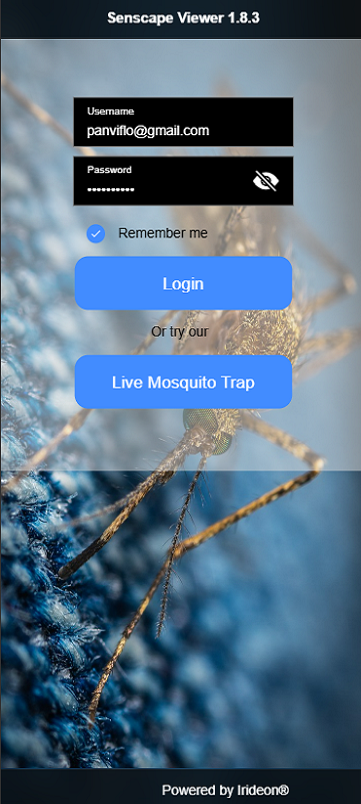

Fig1 - Login

Open the SensViewer app and enter your username and password.

Step 2 - Menu Access​

Fig2 - Menu

Click the three horizontal lines menu icon at the top left to access the main menu.

Step 3 - Bluetooth Selection​

Fig3 - Bluetooth

Select the Bluetooth option.

Step 4 - Scan Sensor​

Fig4 - Scan

Tap "Scan" to find the sensor.

tip

Make sure Bluetooth is turned on within the app settings.

Step 5 - Configure Credentials​

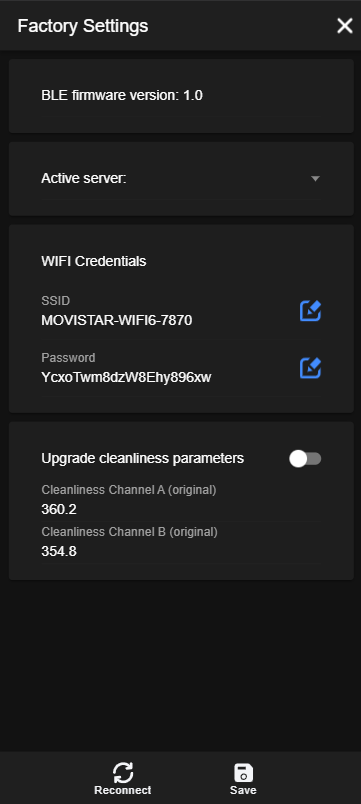

Fig5 - Credentials

Once the sensor is discovered and connected via BLE (Bluetooth Low Energy), proceed with the following steps:

Edit Credentials: Enter the new SSID (Network Name) and Password in the app.

Save Settings: Tap the "Save" button. The app will confirm once the changes have been successfully applied.

tip

You have a maximum of 10 minutes to complete this operation. If the time expires, you may need to restart the process.

warning

If the app shows "The WiFi SSID is too long.", the network name exceeds 31 characters, the maximum the sensor accepts. The same limit applies to the password, and non-ASCII characters such as accents or emojis may count as more than one character. Ask the network administrator to add a shorter SSID on the router, then enter that one instead. Most routers support several SSIDs, for example a dedicated one for IoT devices. The exact steps vary by router brand and model, but typically involve:

  • Logging into the router's admin panel (often 192.168.1.1 or 192.168.0.1, or the manufacturer's app).
  • Adding a secondary SSID (often labelled "Guest network", "Multi-SSID", "IoT network" or "Virtual AP").
  • Setting it to 2.4 GHz only, with "Smart Connect" or band steering disabled for that SSID, since Vectrack sensors don't support 5 GHz.
  • Using WPA2-Personal (AES), since Vectrack sensors don't support WPA3 or WPA2/WPA3 mixed (transition) mode.
  • It is recommended to give it its own password, different from the main network's.
  • Isolating it from the main network (often an option such as "Allow access to local network: Off" in guest network settings, or a separate VLAN), so devices on it cannot reach your other devices.

Phase D: Network Connection & Final Update​

  1. Wi-Fi Synchronization: After saving, the LED remains solid while connecting (up to 1 minute).
    • If it stays solid too long, restart the process and verify credentials.
  2. Firmware Update: Once connected, the LED blinks (1 flash per second) while downloading firmware.
  3. Installation: The LED flashes rapidly during installation.
info

Once the update process has been initiated, the device will automatically retry the firmware update approximately every 30 minutes if an error occurs. In some cases, multiple attempts may be required before the update completes successfully. If the firmware update has not been completed within 24 hours, move the sensor to a different location and repeat the entire external SIM configuration process.

warning

Do NOT power off the sensor during the update process.

Phase E: Success & Final Activation​

  1. Active Mode: Upon completion, the LED flashes once every 5 seconds, indicating normal operation.
  2. Verification: The sensor will generate 15 test signals, which will be sent to the server within 5 minutes.

Server Verification​

To confirm the installation was successful, follow these steps:

  1. Access the Dashboard: Access the platform through the mobile app or directly from the web dashboard at sensviewer.com.
  2. Login Credentials:
    • Username: [your login]
    • Password: [your password]
  3. Status Confirmation: Within 5 minutes, you will receive a status message on the server confirming that the device is online and reporting data.
info

The first communication after recovery may take a few minutes while the sensor establishes the network connection and completes the initial data transmission.


LED Status Reference​

SignalMeaningAction
3 Rapid FlashesReset SuccessfulFlip upright and power on.
Fast BlinkingImage DownloadingWait ~30 seconds.
Solid (Fixed)Pairing / ConnectingConnect via App within 30s.
1 Flash / SecondDownloading FirmwareWait for download.
15 BeepsConnection SuccessVerification in progress.
1 Flash every 5sOperational ModeSensor is ready for use.
